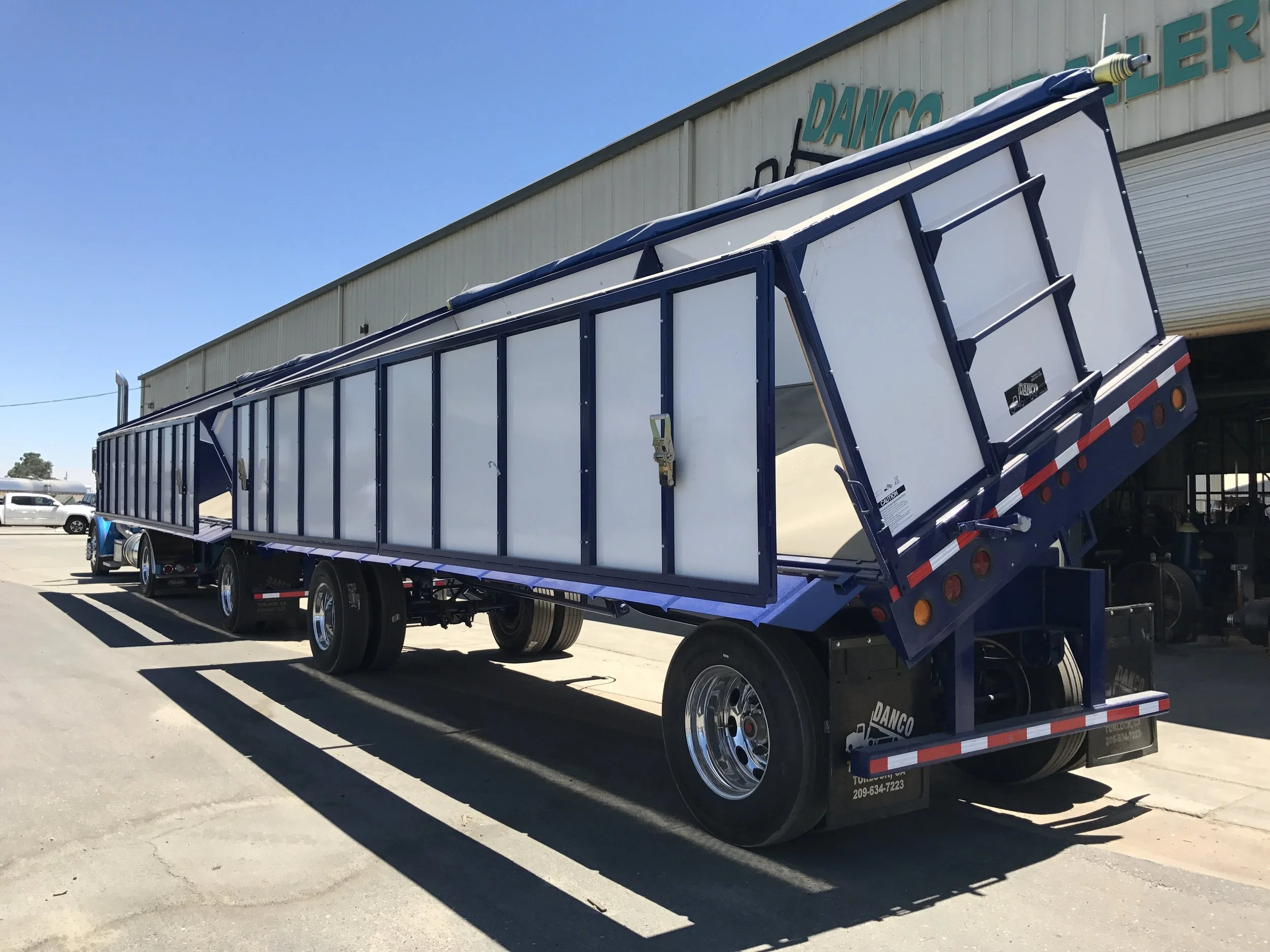

Side Dump Pull Trailer Drivers Side

Side Dump Pull Trailer Drivers Side

Side Dump Semi & Pull Trailers

Features

  • "I" Beam & Tubing main frame with high strength bottom strap & reinforced rub-rail bed with tubing cross-members at the hinge points which maintains rigidity while dumping, resulting in a minimum of flex or uneven rise.

  • Special 4 stage (65" stroke w/29" closed eye centers) telescopic cylinders with cup seal pistons, 32,000 lb. Capacity per trailer at 1500 PSI.

  • Front & rear tapered ends on racks releases load as dump rises preventing hangups and facilitating faster off loading.

  • Top hinged doors with 16" steel flap latch extends bed on dump side keeping load as far as possible from trailer & tires.

  • Automatic latch opens doors as bed is lifting allowing driver to remain in the safety of the cab during dumping operation.

Specifications

  • Hutch Under-mount Weld-On Suspension

  • Jost Two-Speed Landing Legs with Sand Shoes

  • 23,000 lbs. Axles w/7" Brake, 71.5" Track, 10 hole Hub Pilot, Outboard Drums,

  • Steel Center Brace & Divider

  • Western Unit Turntable & Special DANCO Sub-Frame

  • Holland PH550 Air Shock-less Hitch

  • Premier #8 Draw-bar Eye

  • Truck-Lite Sealed Light Harness System & Rubber-mount Lights

  • Standard Steel Frame

  • 1/2" MDO or Fiberglass Reinforced Siding Options

  • 4' or 5' High Racks Standard, Other Heights Optional

  • Special 1 1/8" MDO Plywood Flooring, Tongue & Groove

  • DANCO Standard are dumped from Wet Line Hydraulic Kit on Truck

  • Approx. Weight w/Tires & Wheels

    • 4' Racks Semi 8,000 lbs Pull, 9,700 lbs

    • 5' Racks Semi ~ 8,700 lbs, Pull ~ 10,400 lbs

  • King Pin Setting ~ 33"

  • Rear Axle Setting ~ 39"

  • Drawbar ~ 5'5" Between Trailers

  • Cubic Capacity (flat load) per Trailer 4' Racks ~ 27.5 - 5' Racks ~ 34 Yards


36' Chain Drive Semi Silage Trailer

36' Chain Drive Semi Silage Trailer

Chain Drive Trailer Specifications

  • Available 28½’ to 36’

  • Tandem Axles

  • LED Seal-beam Lights

  • Steel "I" Beam frame

  • 1/2" MDO/Fiberglass Reinforced/Steel Siding Options

  • 6’ & 8’ High racks standard - other heights optional

  • 10 Ga Steel Floor w/3/16” HMW overlay

  • Weight varies depending on options ~ 16,000-18,000 lbs.

  • King Pin Setting ~ 30" to 48"

  • Full Hydraulic Flop Top

  • AL667XH Heavy Duty Chain ~ Min Tensile Strength ~ 28,000 lbs. Pin Diameter ~ .469

  • Double Acting Hydraulic Rear Doors

  • Heavy Duty Gear Box & Motor

  • Wear Strip under drag chain

  • Blasted before painting

  • Painted 1 single non metallic color

  • Automatic Slack Adjusters

Extra Options Available

  • Wing Fling Enclosure ~ Flops down to lay flush with the side of the trailer while being chopped into, then closed for limiting blow out while going down the road. Operated by electric motor.

  • Air Operated Front Flop Door ~ Air ram on flop door in conjunction with air toggle switch mounted in cab of truck allow Flop Door to be operated from in the cab when opening fields.

  • Hinged Top ~ Available Hydraulically or Manually operated, allow for getting the top out of the way when being loaded with a loader. Also when used in conjunction with a Wing Fling, top can be opened partially to make opening larger and therefore easier for chopper to hit.

  • Additional Skirt & Additional Lights ~ Allow lights to be positioned as often as preferred, adds only to the aesthetics of the trailer.


31' V-Bottom Semi Manure Spreader

31' V-Bottom Semi Manure Spreader

Manure Spreader Trailer Specifications

  • 34’ Std Length - Other Lengths Available (20' to 36')

  • 42” Std Floor Width - Other Widths Available (30”- 42”)

  • Std Tandem Axle - Also available as single axle depending on length

  • Sealed Rubber-mount Lights

  • Steel I Beam Frame

  • All Steel Construction

  • Sliding Hydraulic Rear Door Opening

  • Rear Door Hinged on Top to Allow Total Opening for Stock Piling

  • Planetary Gear Box & Hydraulic Motor

  • Single or Double Hydraulic Spinners

  • Blasted Before Painting

  • Automatic Slack Adjusters

  • 2" x 12" Removable Board Extension


14’ V-Bottom Pull Behind Orchard Spreader

14’ V-Bottom Pull Behind Orchard Spreader

Orchard Spreader Trailer Specifications

  • Std 14’ Length

  • Single Non-Brake HD Axle

  • Used Super Singles

  • All Steel Construction

  • Sliding Hydraulic Rear Door Opening

  • Planetary Gear Box & Hydraulic Motor

  • Double Hydraulic Spinners

  • Adjustable Spinner Table

  • Blasted before painting

  • AL667XH Heavy Duty Chain ~ Min Tensile Strength ~ 28,000 lbs. Pin Dia ~ .469

  • 30” Floor Width

  • Auburn Heavy Duty PTO Planetary Pump Drive w/50 HP (Continuous Duty)
